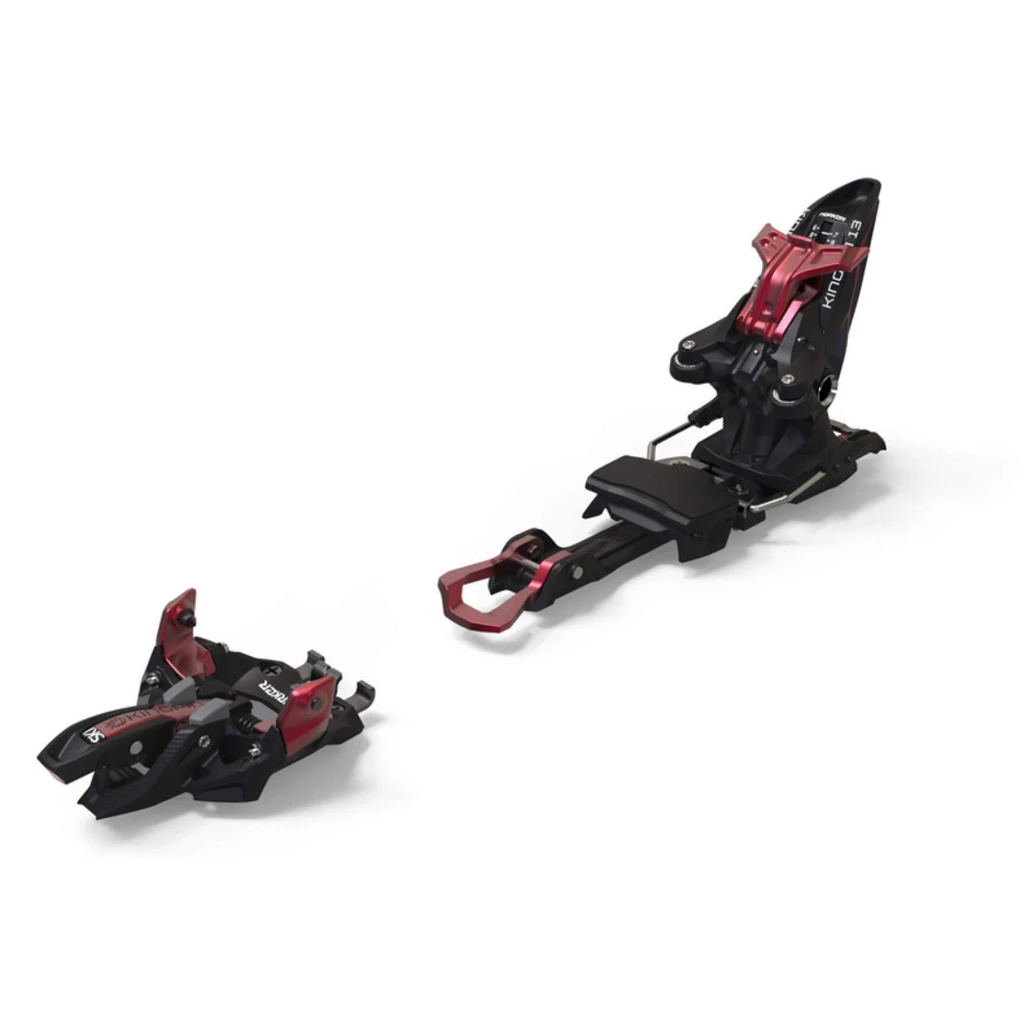

Marker Kingpin 13 Binding
The Kingpin 13 with new toe piece for ambitious backcountry and freeride touring enthusiasts.
The innovative Kingpin redefines the performance standard for Alpine touring bindings. The Kingpin’s unique toe and heel pieces are the culmination of years of R&D testing. Ease of use and best of all, great power transmission while on the descent mean that you can have a perfect day in the backcountry on the Kingpin. The latest version now includes a 2 spring toe based on the Alpinist technology. This saves 80g per toe without losing performance! The Kingpin offers tremendous walking and step-in comfort, wide drill pattern and XXL Power Transmitter for impressive power transfer. Including climbing aids from 0° to 13°.
Procut classification
DIN max.: | 130 |
Documents
-
Catalog Marker 22/23
Technologies
-
KINGPIN HEEL
The revolutionary heel construction for the PinTech bindings features wide sole contact points to deliver the kind of direct, lossless power transfer more frequently seen in alpine bindings. The KingPin heel is also many times safer than traditional PinTech bindings.
-
XXL POWER TRANSMITTER
Extra large power transmitters in the heel with reduced weight for minimum friction and maximum centering for the lateral movement of the heel.
-
CARBON REINFORCED PIN TOE & ANTI ICE PADS
Carbon fiber reinforced material for improved stiffness and super lightweight. Anti Ice Pads in the base of toe to prevent icing in critical areas.
-
CLIMBING AIDS KINGPIN
The climbing aid offers two positions with 7° and 13° which can easily be accessed with the ski pole, even in an unstable standing position. Integrated elastomer paddings dampen the impact reducing the irritating traditional “clack” and allow more comfortable hiking.
-
CRAMPON KINGPIN / ALPINIST
Easy to install crampons for KINGPIN and Alpinist available in the sizes 80mm, 90mm, 105mm, 120mm.
-
VERTICAL & LATERAL ADJUSTABLE RELEASE FUNCTION
Vertical and lateral individually adjustable release in the heel for improved release functionality.
Technical description
- Weight
680 g (75-100 mm), 690 g (100-125 mm) - Height of stance
21,5 mm - DIN
6.0 – 13.0 - Tip
Carbon reinforced Pin Toe - Heel
Kingpin Heel - The recommended weight of the skier
<120kg - Walking modes
0°, 7°, 13°
Other
- Product code
N21002858
